| Application | beer,milk,beverage,fruit juice,pharmacy industries etc. |

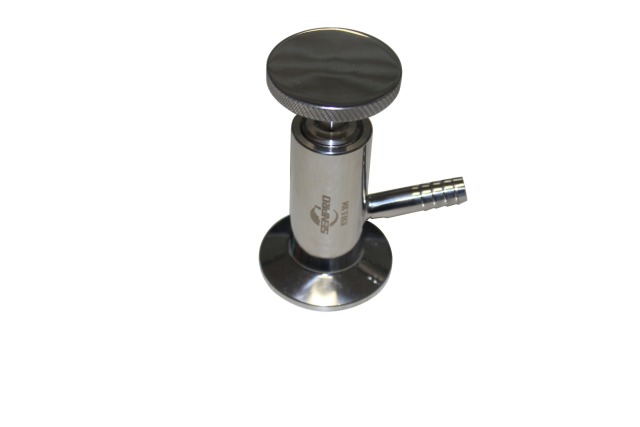

| Features | Its mainly applied to extract sample from tank or pipeline.it also can be assembled at the bottom of tank or pipeline to drain away the remains. The aseptic sampling valve is designed for sterilization before and after sampling; Standard design:the aseptic sampling valve consist of three parts, valve body,handle and membrane. The rubber membrane is placed on the stem of the valve and works as a stretchable plug. |
| Operate principle | Open:sampling-the manual valve is opened by rotating the handle or by activating the lever,the steam and the membrane are retracted,allowing liquid to pass; Close:Sterilizing-the built-in spring closes the valve and keep the channel open between the hosed in order to sterilize.If using by steam,suggest to install a small pressure relief valve on the outlet |
| Material | valve body-SS316L,handle-SS304,diaphragm-EPDM,PTFE,VMQ |
| Working temperature | 120℃（EPDM）,130℃（PTFE)）; Maximum sterilization temperature,dry steam:121-134℃，steam must be dry,because the condensate water will damage the diaphragm. Please replace the diaphragm after 100 times sampling or sterilization. |
| Working pressure | 6bar |
| Seal material | EPDM,VMQ,FPM |
| Connecting | Clamp,weld,thread,hosepipe,boss mouth |
| Standard | 3A,DIN, SMS, IDF, RJT, BPE, ISO |
